Dot Matrix Clock

Posted on 03 September 2021 by yonetici in Boxes, Cars, For the home, Kitchenware, Products, Proteus Projects, Timing, Vehicle Accesories | Comments Off

This is a design for use as a table or a in-vehicle clock. It utilizes a DS 1307 real time clock chip and powered by a pic 12F683 microcontroller. The power can be supplied via a standard USB cable.

Read more for more informatin, renderings, step by step assembly photos, STL files for 3d printing as well as source C codes for the microcontroller. Have fun building it.

the case is secured by two 10x2mm screws from below. And a hook above.

the case is secured by two 10x2mm screws from below. And a hook above.

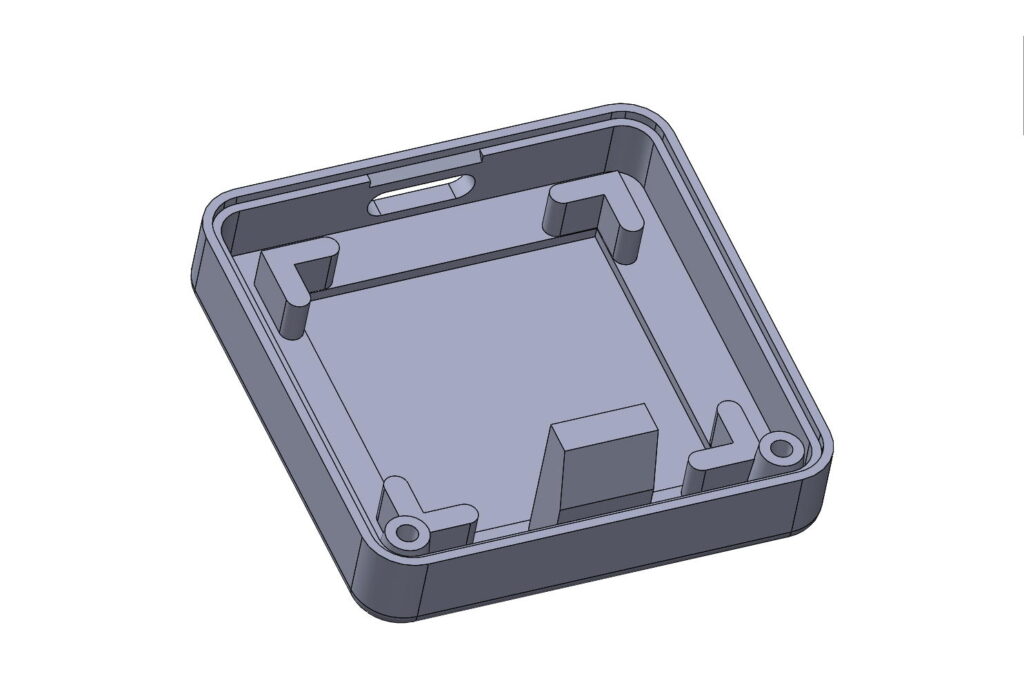

interior details of the front & rear case parts. Continue to step by step assembly photos on the next page.

interior details of the front & rear case parts. Continue to step by step assembly photos on the next page.
