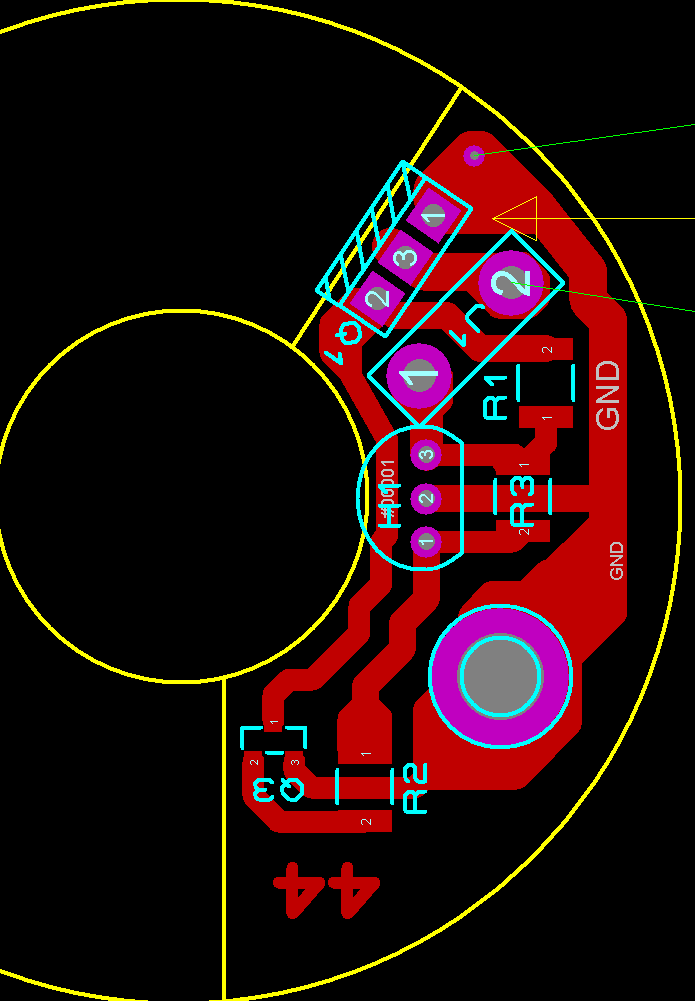

I’ve did a research and made a similar circuit myself and below pcb belongs to that circuit. You will need to make your own pcb for the circuit above or an other circuit from the web etc.
I’ve even made several microprocessor controlled ignition circuits with software advance timing etc but they need to be found from my archives and organized to be published. In the future hopefully.
Goto the next page to download STL files
